Lazer Lamps – Glide – LED Bar / roof pod set – Ford Ranger / Raptor / PHEV / VW Amarok - 2023+
€ 1.245,00 excl. VAT | € 1.506,45 incl. VAT
- Low-profile light unit with dual Glide high-performance LED driving lights
- Custom made for the Ford Ranger / Raptor / PHEV / Amarok (2023 +)
- Compatible with all models without roof rails and models with roof rails (as shown)
- Made of UV-resistant PC-ASA material – Gloss black lacquered
- UNECE approved according to Reg 149 (Class B Driving Lamp, E-Ref 12.5) for high beam function on public roads – Low light output/E-Mark mode only
- Double light output, powered by Lazer's 'Flash-To-Dim' technology
- Supplied with positioning templates, VHB positioning tabs (to hold the unit in place while the silicone adhesive cures) and silicone adhesive for (semi)permanent mounting of the unit.
- Includes wiring harness set for dual lamps.
- Including cable duct for a drilling-free solution.
- 5 year warrantyDesigned and manufactured in the UK
Delivery time 1 to 2 weeks
Specially designed for the Ford Ranger/Raptor/PHEV/VW Amarok Lazer introduces its bespoke LED light module for vehicles from model year 2023 onwards. Designed to house 2x Glide (single E-marked) high-performance LED light bars, the module is a sleek installation that delivers an incredible 23.000 lumens for a transformative night-time driving experience. The lights in this kit have been re-approved (under UNECE Reg 149, E-Ref 12.5) as ‘single lights’, making this product compliant even in European markets where lights must be fitted in pairs, and with a low reference number thanks to Lazer’s dual-output ‘flash-to-dim’ functionality.
The module is made of high-strength PC-ASA material and comes with a high-quality 2K gloss black paint finish, ensuring it blends seamlessly into your vehicle for an installation with a true OE look and finish. Additionally, for customers who prefer a drill-free solution where the roof unit is mounted to the roof (and removable if necessary), a cable duct is included to route the lamp wire along the outside of the vehicle's A-pillar. This eliminates the need to drill into your vehicle's roof.
The roof unit comes with pre-assembled lights and a wiring harness for connecting to the car's original electrical system. For cars with LED Matrix headlights (depending on the model), we recommend combining this kit with Lazer's industry-leading CANNY solution. This solution ensures that the lights only switch on when there is no oncoming traffic and that the roof light activates with the high beam of the Matrix headlights.
Like all Lazer products, the Ranger/Raptor/PHEV/Amarok LED roof unit and associated lights designed, developed and manufactured in the UK to the highest standards and backed by our comprehensive 5-year warranty.

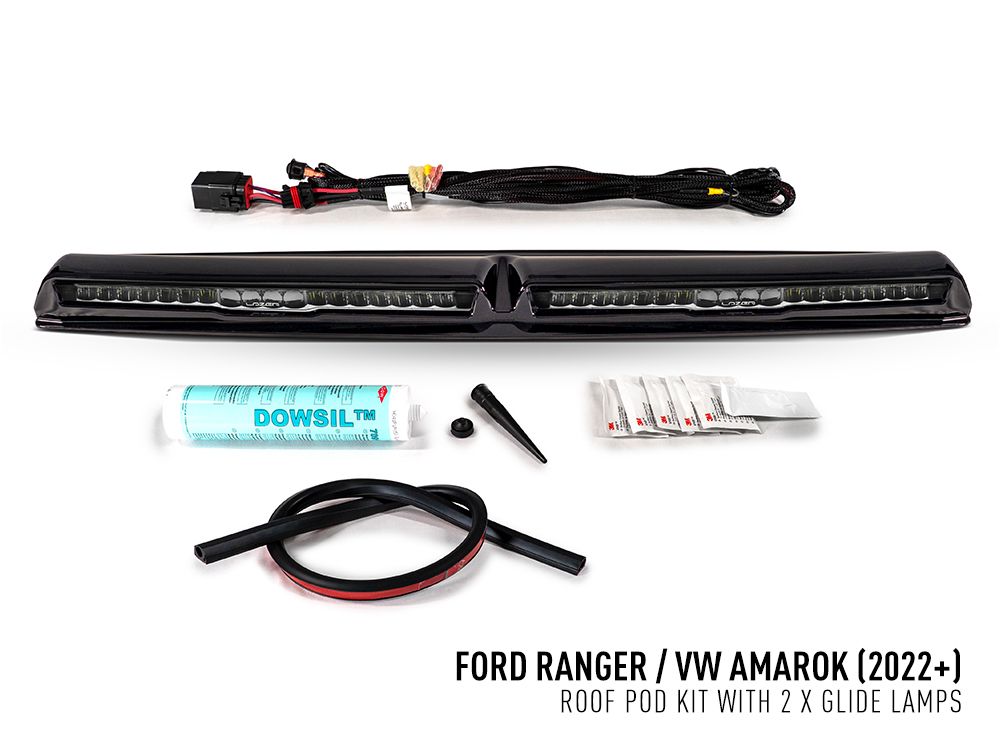

What is included:
Roof pod (2x Glide pre-assembled)
Positioning templates (left/right)
VHB cleaning pouch (x5)
Black Dow Corning (1x tube)
Wiring kit for one lamp + Y-splitter
12V power relay
Cable entry (x1)
Heat shrink connection (x2)
1,2 m cable duct
Please see the download section for installation instructions or the videos for a step-by-step instructional video.
† – Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here. # – All Lazer products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
